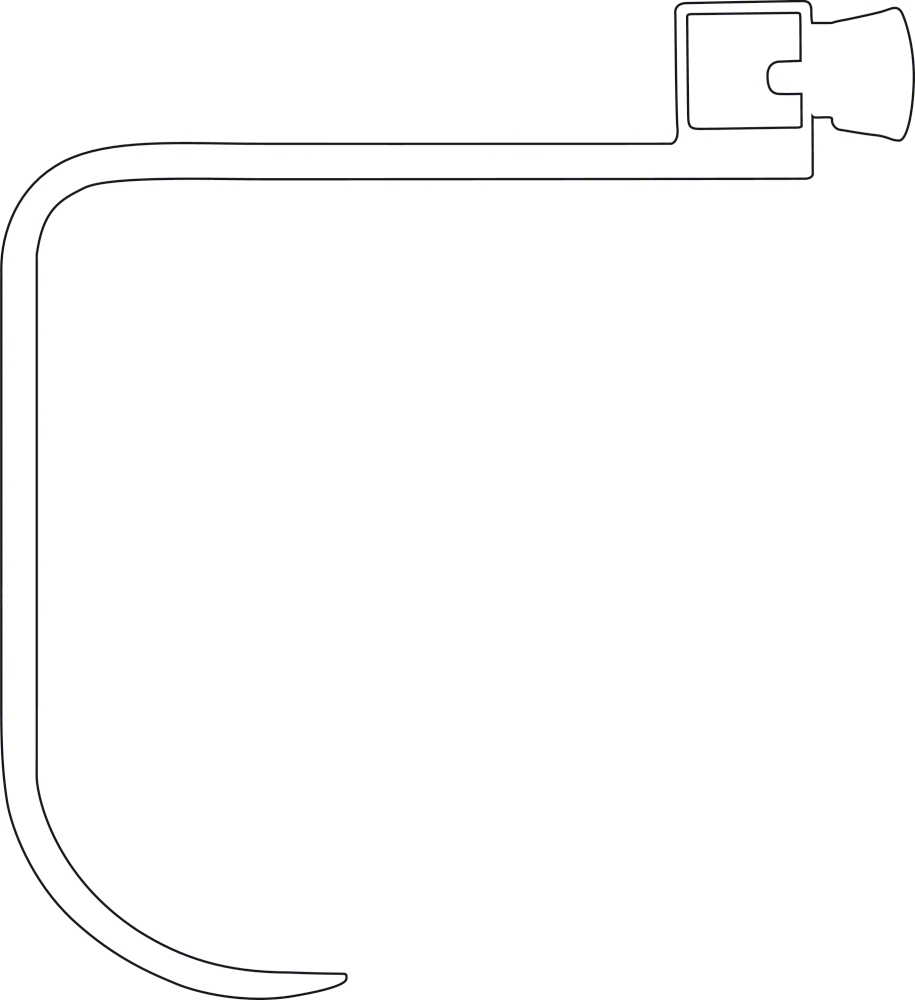

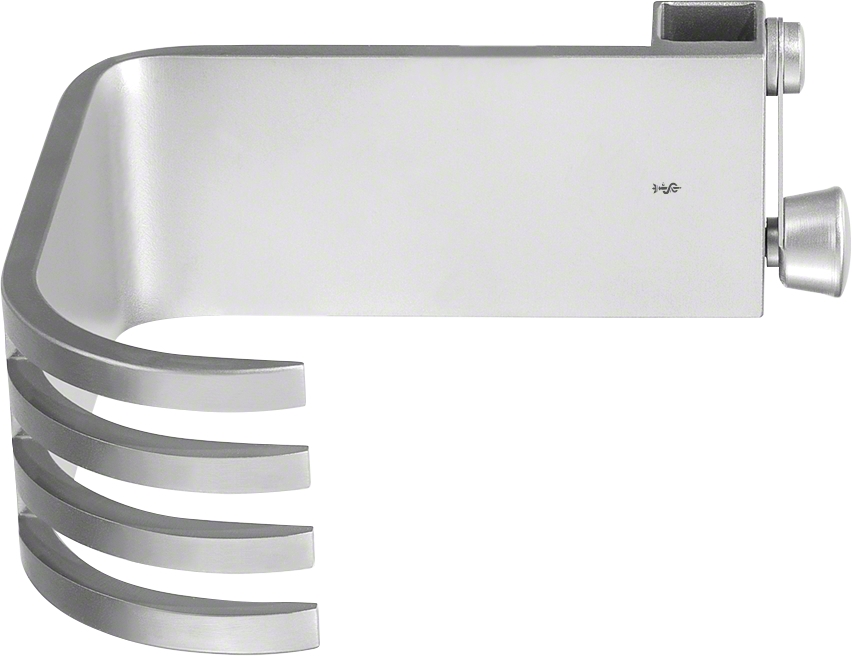

CHARNLEY Retraction System, blade only, 60 mm (2 3/8"), short, jaw depth: 64 mm, jaw width: 25 mm
Back
MG566R
CHARNLEY Retraction System, blade only, 60 mm (2 3/8"), short, jaw depth: 64 mm, jaw width: 25 mm
Add to cart section
PC - 1
Add to cart
Specifications
Documents
Processing
Retractors/Hooks/Spreaders/Spatula
Product Search Type
Retraction System
Author
CHARNLEY
Author Competitor
CHARNLEY
Aesculap Product Groups
General Surgical Instruments
Type
blade only
Length
60 mm
Length (Inch)
2 3/8"
Jaw/Blade width
25 mm
Jaw/Blade depth
64 mm
Figure/Size
short
Radiolucent/Solid
solid
to be used with (code)
MG697R
Discipline
Orthopaedics / Traumatology
Indication
Hip
UDI Direct Marking
Yes
Disposable / Reusable
reusable
Sterility
non-sterile
Product contains Latex
No
