KIRSCHNER Abdominal Retraction System, frame only, oversize, jaw depth: 355 mm, jaw width: 275 mm
Back
BV664R

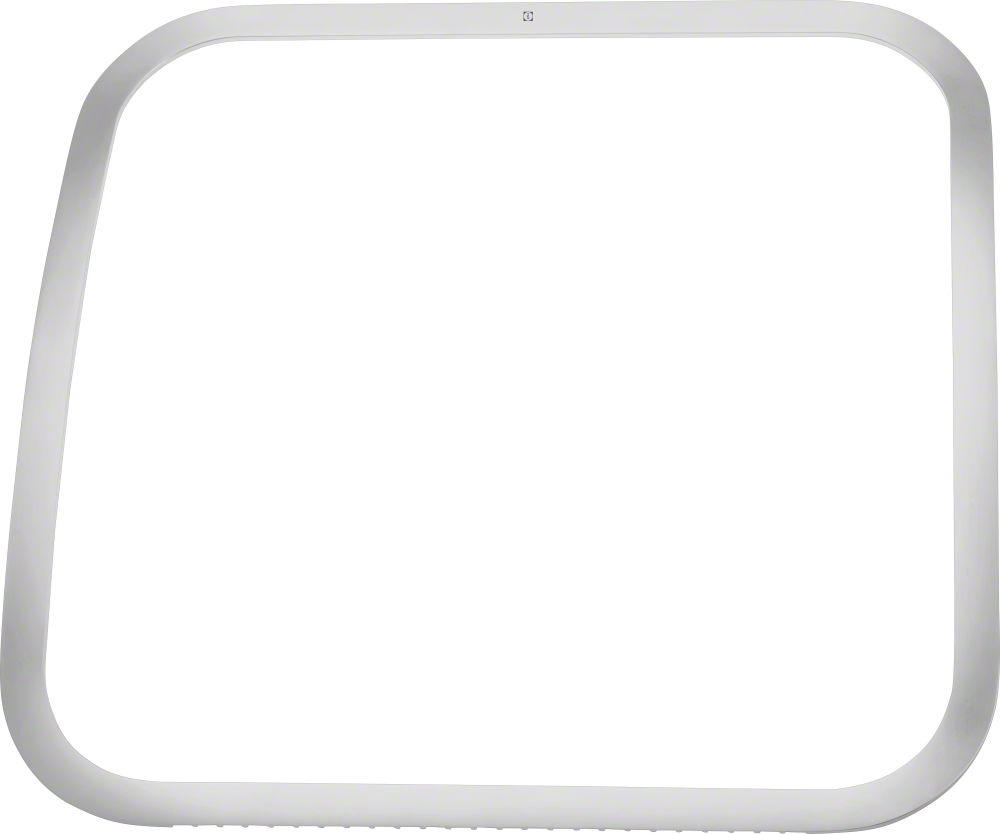

KIRSCHNER Abdominal Retraction System, frame only, oversize, jaw depth: 355 mm, jaw width: 275 mm
Add to cart section
PC - 1
Add to cart
Specifications
Documents
Processing
Retractors/Hooks/Spreaders/Spatula
Product Search Type
Abdominal Retraction System
Author
KIRSCHNER
Aesculap Product Groups
General Surgical Instruments
Type
frame only
Jaw/Blade width
275 mm
Jaw/Blade depth
355 mm
Figure/Size
oversize
to be used with (code)
BV668R, BV669R, BV670R, BV672R, BV674R, BV675R, BV676R, BV680R, BV682R, BV684R
Discipline
General / Visceral Surgery, Gynaecology, Urology, Vascular Surgery
UDI Direct Marking
Yes
Disposable / Reusable
reusable
Sterility
non-sterile
Product contains Latex
No
