DOYEN Abdominal Retractor, 280 mm (11"), jaw depth: 48 mm, jaw width: 105 mm
Back
BT723R

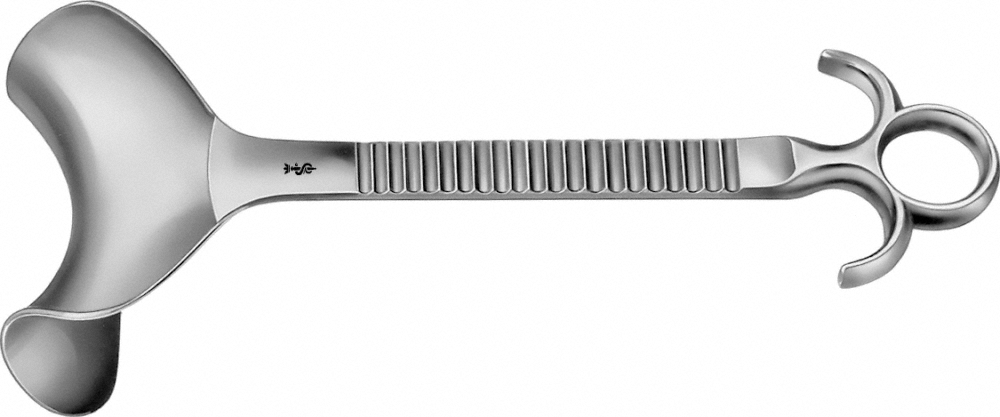

DOYEN Abdominal Retractor, 280 mm (11"), jaw depth: 48 mm, jaw width: 105 mm
Add to cart section
PC - 1
Add to cart
Specifications
Documents
Processing
Retractors/Hooks/Spreaders/Spatula
Product Search Type
Abdominal Retractor
Author
DOYEN
Aesculap Product Groups
General Surgical Instruments
Design
single ended
Type working end
Blade
Length
280 mm
Length (Inch)
11"
Blades / Jaw
blade
Jaw/Blade width
105 mm
Jaw/Blade depth
48 mm
Discipline
General / Visceral Surgery, Gynaecology, Cardiac / Thoracic Surgery, Vascular Surgery
UDI Direct Marking
Yes
Disposable / Reusable
reusable
Sterility
non-sterile
Product contains Latex
No
